Home >Whole House Water Filter > Well Water Treatment  > Backwash Water Filters

Multi-media Auto Backwash Water Filter Systems.


Multimedia Filter Systems also known as depth filters or turbidity filters contain two or more types of media and gravel under-bedding. The gravel is used as a support to keep smaller medias out of the distribution system and to stop channeling of water.

Our multimedia system is design for the removal of turbidity in the water caused by sand, silt, ferric iron and oxidized manganese or sulfur. They are used in applications such as chlorination filtration systems, general turbidity removal and prior to ultraviolet sterilizers or water softeners.

Multimedia filtration is a proven design concept; the coarse media layers in the top of the tank trap large particles, and successfully smaller particles are trapped in the finer layers of media deeper in the bed. The result is a highly efficient filtering since removal takes place throughout the entire bed. Multimedia filters typically remove particles 5 to 15 microns in size or larger as opposed to a conventional single media sand filter which removes 30 micron or higher.

Our Multimedia Filter are equipped with Fleck 5600 or ProFlo Backwash Control Valve according with mineral tank size for optimal performance.

We use Triple Filtration Media for maximum removal: Anthracite, Sand and Garnet.
Mutimedia Water Filter Distribution

Anthracite: The Anthracite Media has low ash and friability. The coal is cleaned to reduce ash content , screened and classified to proper size for optimal filtration capabilities. This layer is responsible for the filtration.

Sand: The sand provides the necessary support for the upper layer and assist in the hydraulic involve during the backwash cycle.

Garnet: The garnet media is a naturally hard, durable high specific gravity mineral. Its resistance to attrition means less loss of media and shut-down time. high specific gravity lends more control during backwash and lower losses to drain. The angular shape provides more ability to filter and longer production runs.
Fleck 5600

For Model 56MUL-10, 56MUL-15

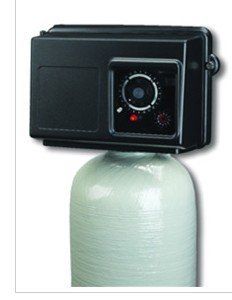

Fleck 2510

For Model 25MUL-10, 25MUL:-15 and PRMUL-20

5600 Fleck Multimedia Whole House Filter 2510 Multimedia Whole House Backwash Filter
Fleck 5600 Multimedia Water FIlter Control Valve 2510 Fleck Multimedia Water Filter Control Valve



System Specifications:
System Includes the following unless specified:
  • FleckŪ 5600 or Fleck 2510 Control Valve with Rust Resistant valve body for strength and durability.
  • Rust Resistant Structural Almond Mineral Tank with base. Tank size according with Model specifications
  • Weather Resistant, Durable Tank Jacket tank size 1.5 cu feet or less. Color varies.
  • Multimedia containing Anthracite, Sand and Garnet Media, amount according with model specifications.
  • Gravel under-bedding to protect and support distributor.
  • Control Valve according with model specifications including valve cover.
  • 1" distributors and 3/4 or 1" bypass. .
  • Super Warranty - 5 years control valve and 10 years Mineral Tank.


Available Models:


56MUM-10   :  Fleck 5600 Auto Backwash Multimedia Water Filter 1.0
  • Fleck 5600 Timer Control Valve - 3/4" Bypass Valve
  • 1.0 cu - Multimedia containing Anthracite, Sand and Garnet Resin
  • 9 X 48 Mineral Tank
  • Weather Resistant, Durable Tank Jacket
  • Flow Rate - 4.4  GPM
  • Backwash  rate 5.26 GPM @ 60 F

Our Price: $ 550.00                 S&H: $ 95.00

Quantity




25MUM-10   :  Fleck 2510 Auto Backwash Multimedia Water Filter 1.0
  • Fleck 2510 Timer Control Valve - 1" Bypass Valve
  • 1.0 cu - Multimedia containing Anthracite, Sand and Garnet Resin
  • 9 X 48 Mineral Tank
  • Weather Resistant, Durable Tank Jacket
  • Flow Rate - 4.4  GPM
  • Backwash  rate 5.26 GPM @ 60 F

Our Price: $ 575.00                 S&H: $ 95.00

Quantity




56MUM-15 : Fleck 5600 Auto Backwash Multimedia Water Filter 1.5
  • Fleck 5600 Timer Control Valve - 3/4" Bypass Valve
  • 1.5 cu - Multimedia containing Anthracite, Sand and Garnet Resin
  • 10 X 54 Mineral Tank
  • Weather Resistant, Durable Tank Jacket
  • Flow Rate - 5.5  GPM
  • Backwash  rate 6.60 GPM @ 60 F
Our Price: $ 630.00                   S&H: $ 95.00

Quantity




25MUM-15 : Fleck 2510 Auto Backwash Multimedia Water Filter 1.5
  • Fleck 2510 Timer Control Valve - 1" Bypass valve
  • 1.5 cu - Multimedia containing Anthracite, Sand and Garnet Resin
  • 10 X 54 Mineral Tank
  • Weather Resistant, Durable Tank Jacket
  • Flow Rate - 5.5  GPM
  • Backwash  rate 6.60 GPM @ 60 F
Our Price: $ 655.00                       S&H: $ 95.00

Quantity




PRMUM-20 : Fleck 2510 Auto Backwash Multimedia Water Filter 2.0
  • Fleck 2510 Timer Control Valve- 1" Bypass Valve
  • 2.0 cu - Multimedia containing Anthracite, Sand and Garnet Resin
  • 12 X 52 Mineral Tank
  • Flow Rate - 7.9  GPM
  • Backwash  rate 9.48 GPM @ 60 F



Our Price: $ 720.00              S&H: $ 95.00

Quantity
