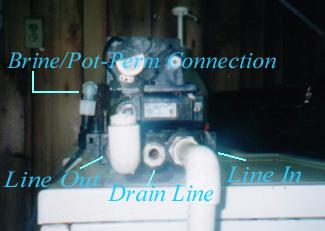

|Taking a Close Look
to your Autotrol Valve.
Brine/ Pot-Perm Connection: This
3/8 Brass Nut connection is used to hook up the Potassium Permanganate Tank when
the control Valve is used in a Greensand Permanganate Water Filtration System or
The Brine Tank when the Autotrol control Valve is used in a Water Softener System.
The 3/8 Plastic hose that goes to the Brine Tank is shown in the picture.
Drain Line: This drain hose barb
is generally located on the lower, backside of the valve. This Drain
line is used to hook up the 1/2 inch plastic drain hose connection from the
system to the drain your are going to be using.
Line In: Main Water line coming
into the system. An arrow indicates the direction of flow.
Line Out: Filtered Water coming
out of the system. An arrow indicated water flow.
